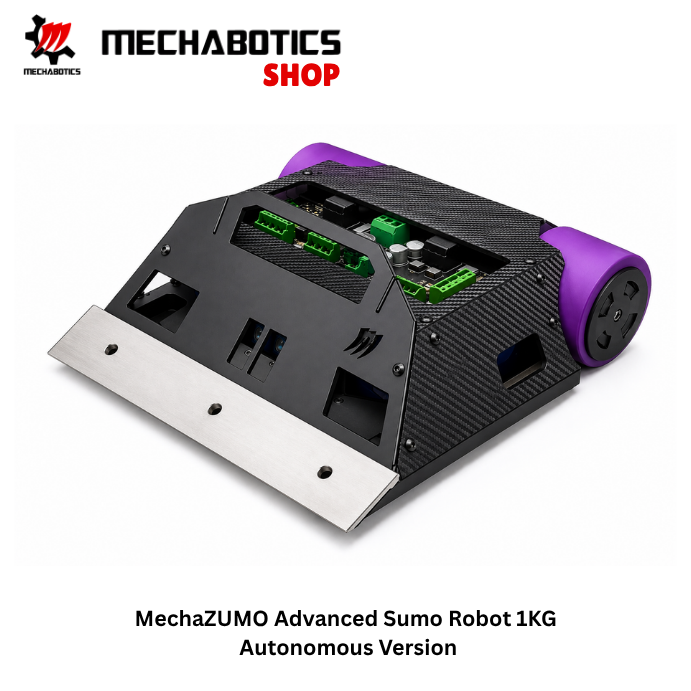

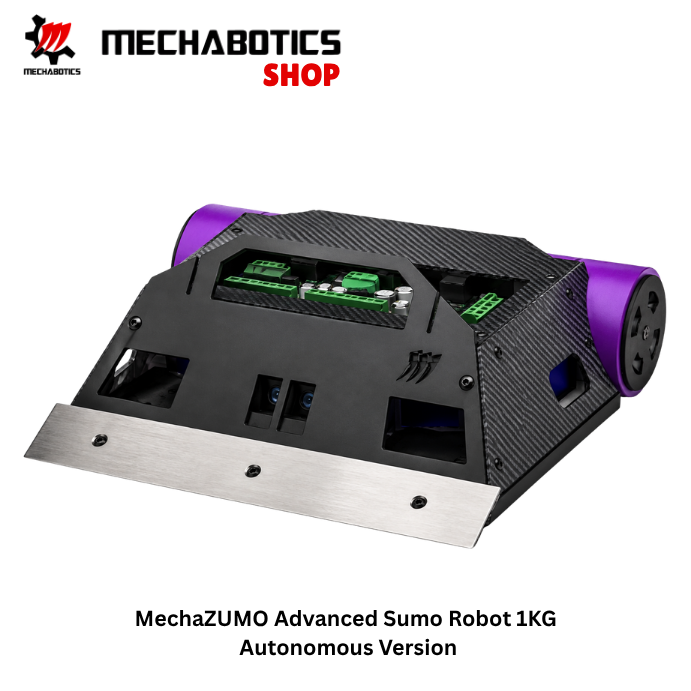

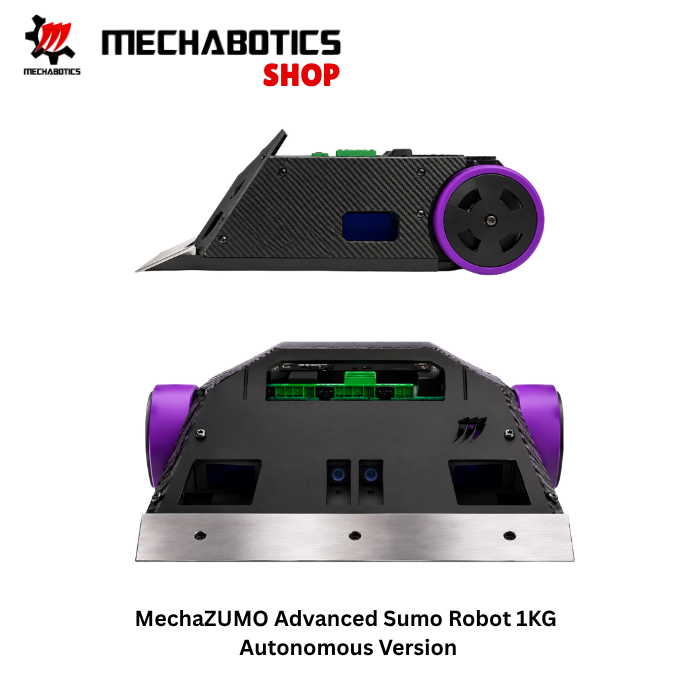

MechaZUMO Advanced Sumo Robot 1KG

MechaZUMO Advanced Sumo Robot 1KG is a competition-grade sumo robot developed by Mechabotics for high-performance robotic sumo applications. Built with a compact 150 ? 150 mm footprint and weighing approximately 0.95?1.0 kg, MechaZUMO combines high-speed drive, strong traction and a durable low-profile chassis for competitive performance on the Dohyo.

Powered by two 12V G25 high-speed DC motors rated at approximately 939 RPM and 3 kg?cm torque, the robot provides fast acceleration and aggressive movement. A 17A dual motor driver and dedicated controller board provide reliable motor control, while the 11.1V LiPo battery supplies the power required for competition.

The robot is equipped with four 0.4 mm ? 150 mm sharp blades, designed to achieve a low front clearance and improve the ability to get underneath an opponent during attack.

Its chassis combines 3D-printed components with CNC-machined metal parts, providing a balance between strength, weight and serviceability. High-grip silicone tyres provide traction on the Dohyo, with an additional pair of silicone tyres included as spare.

A built-in digital voltage display allows quick battery voltage monitoring, while the competition package also includes a storage box, charger and essential maintenance accessories.

Available Versions

MechaZUMO 1KG is available in three competition configurations:

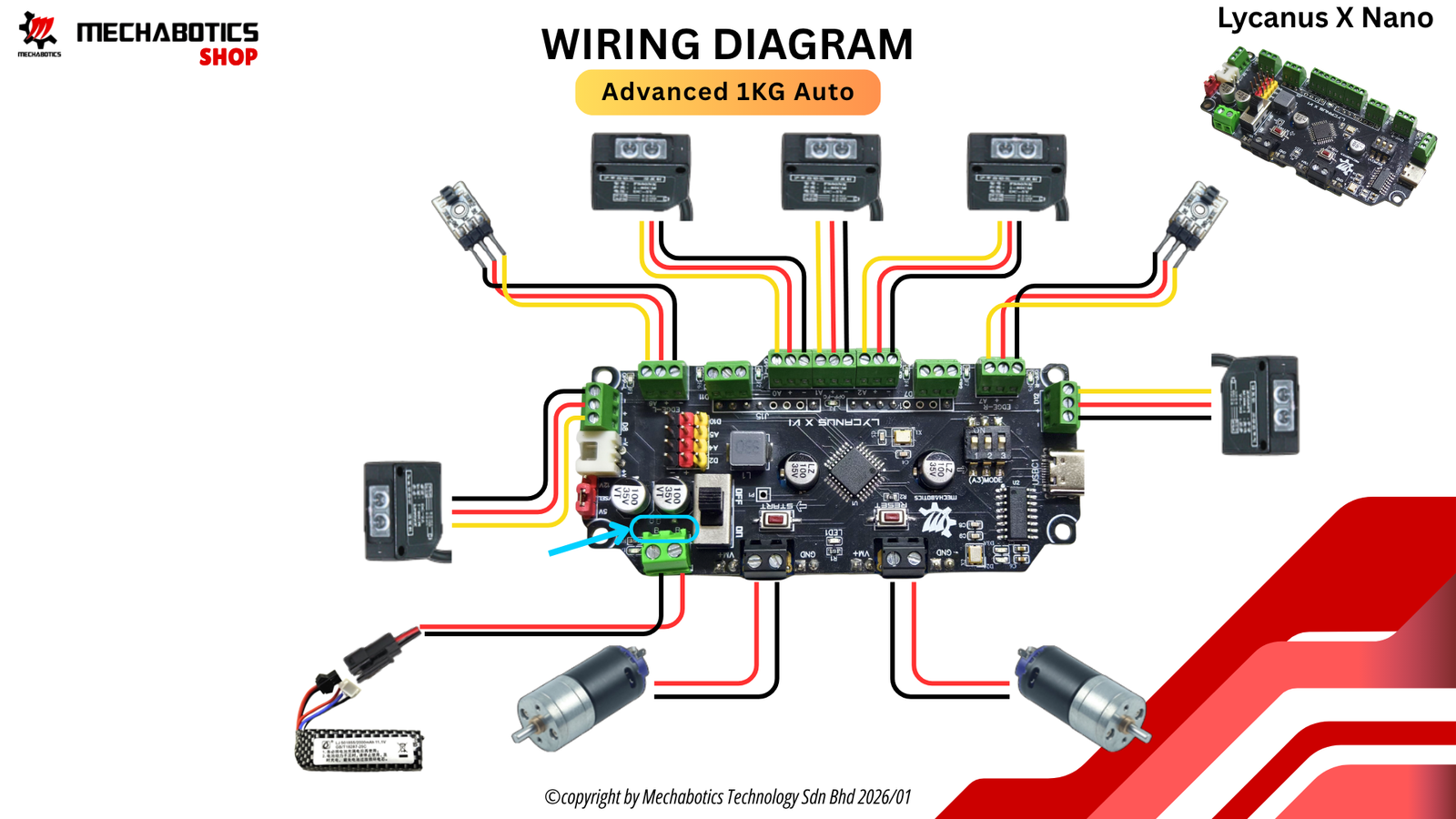

Competition Spec ? Autonomous Version | KIT010

Designed for fully autonomous sumo competition.

The Autonomous Version is equipped with:

5 ? Diffuse Opponent Sensors with detection range up to approximately 80 cm

2 ? Edge Detection Line Sensors

7-Mode Tactical DIP Switch

Start Module + Remote

The opponent sensors allow the robot to detect competitors from multiple directions, while the edge sensors detect the Dohyo boundary and help prevent the robot from driving outside the competition area.

The 7-mode tactical system allows different strategies or starting movements to be selected before a match.

Competition Spec ? RC Version | KIT011

Designed for manually controlled RC sumo competition.

The RC Version includes:

1 ? 6-Channel DumboRC Controller

RC Receiver System

Manual directional and movement control

This configuration gives the operator direct control over the robot, making driving skill, positioning, timing and attack strategy important elements during competition.

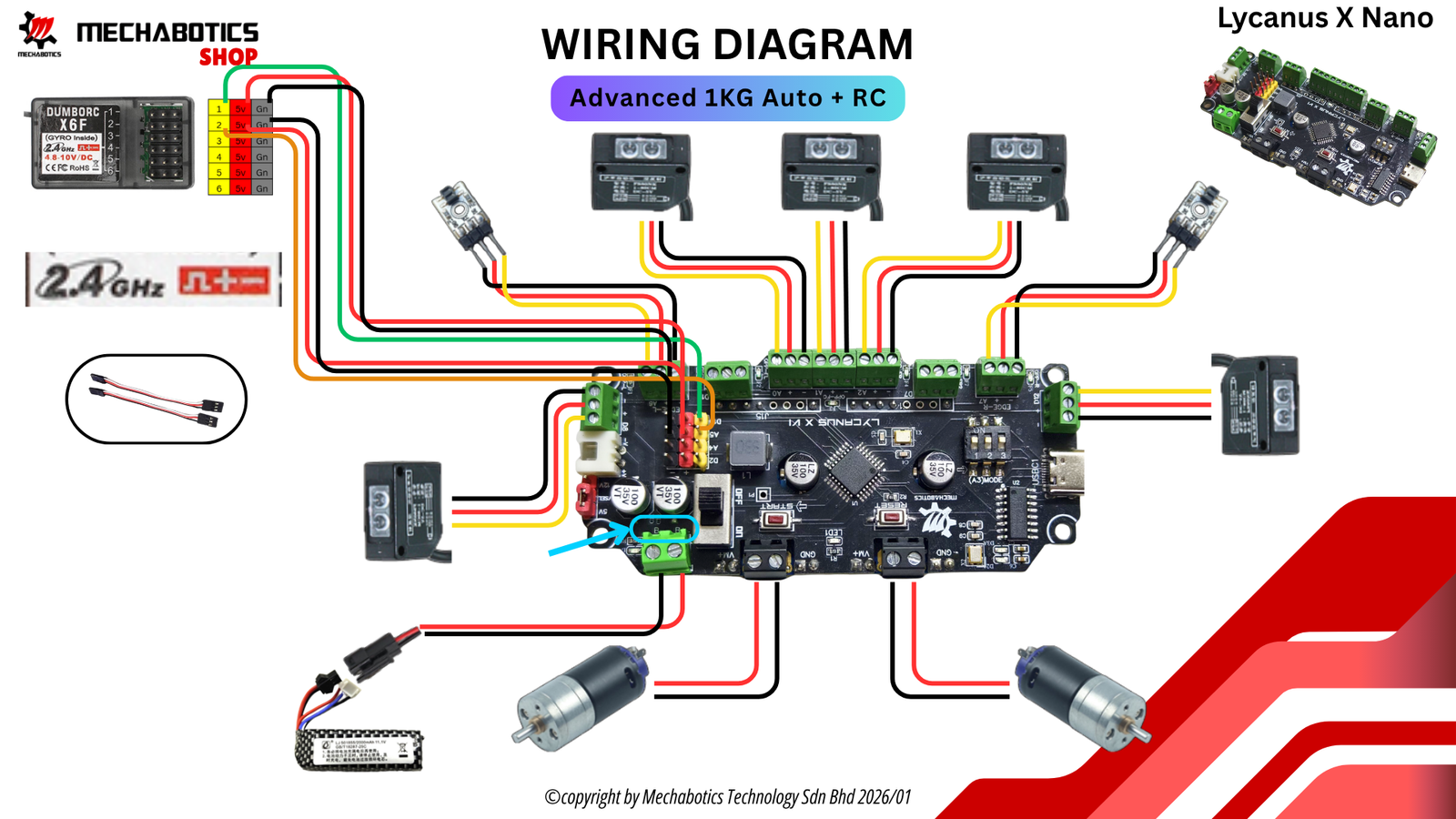

Competition Spec ? Autonomous + RC Version | KIT012

The most versatile configuration in the MechaZUMO 1KG series.

This version combines the capabilities of both Autonomous and RC control in a single robot platform, making it suitable for users who participate in different competition formats or institutions requiring a flexible robotics training platform.

It combines the autonomous sensing and tactical system with the RC control system.

Main Specifications

Robot Size: 150 mm ? 150 mm

Robot Weight: Approximately 0.95?1.0 kg

Battery: 11.1V LiPo Battery

Drive System: 2-Wheel Drive

Motor: 2 ? 12V G25 High-Speed & High-Torque DC Motor

Motor Speed: Approximately 939 RPM

Motor Torque: Approximately 3 kg?cm

Motor Driver: 17A Dual Motor Driver

Controller: Dedicated MechaZUMO Controller Board

Front Blade: 4 ? 0.4 mm ? 150 mm Sharp Blade

Body Construction: 3D Printed + CNC Metal Components

Tyre: High-Grip Silicone Tyre

Battery Monitoring: Digital Voltage Display

Tactical Selection: 7-Mode DIP Switch (Autonomous configuration)

Opponent Detection: 5 ? Diffuse Sensors, up to approximately 80 cm (Autonomous configuration)

Edge Detection: 2 ? Line Sensors (Autonomous configuration)

Start System: Start Module + Remote (Autonomous configuration)

RC System: 6-Channel DumboRC Controller (RC configuration)

Package Includes

Each package includes the applicable robot configuration together with:

1 ? MechaZUMO Advanced Sumo Robot 1KG

1 ? 11.1V LiPo Battery

1 ? Extra Pair of Silicone Tyres

1 ? 11.1V Battery Charger

1 ? Storage Box

1 ? Screwdriver

1 ? Allen Key

Extra Screws & Nuts

1 ? Battery Checker

1 ? USB Cable

Autonomous and RC components are included according to the selected product version.

Built for Competition

MechaZUMO is developed for users who require more than a basic educational sumo robot. Its high-speed drivetrain, high-grip tyres, sharp front blade, compact chassis and configurable control system make it suitable for competitive robot sumo development and training.

It is also an excellent platform for students, robotics clubs, schools, TVET institutions, colleges and universities to explore robot control, sensor systems, embedded programming, mechanical design and competition strategy.

MECHABOTICS ? LEARN. BUILD. INNOVATE.
