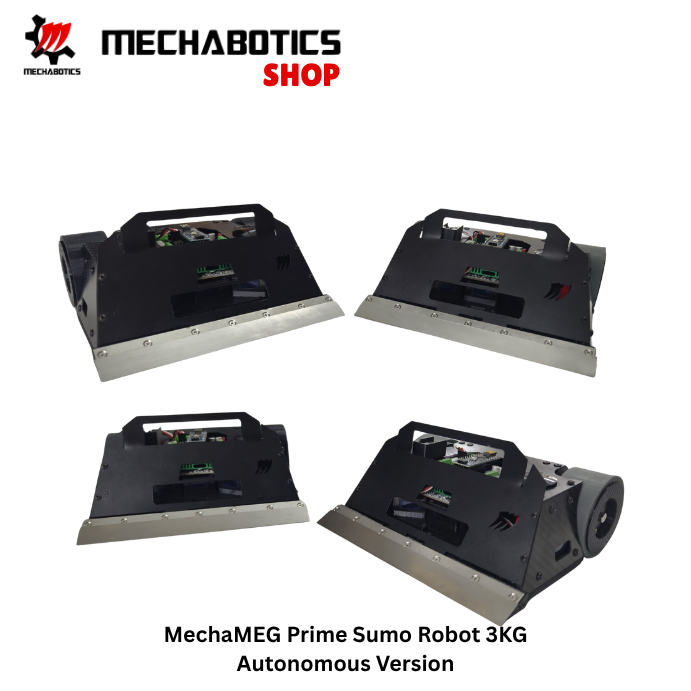

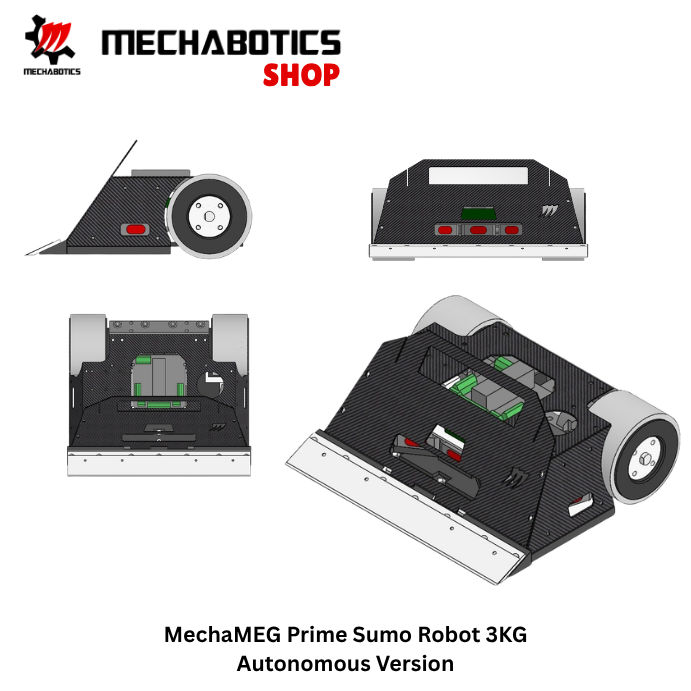

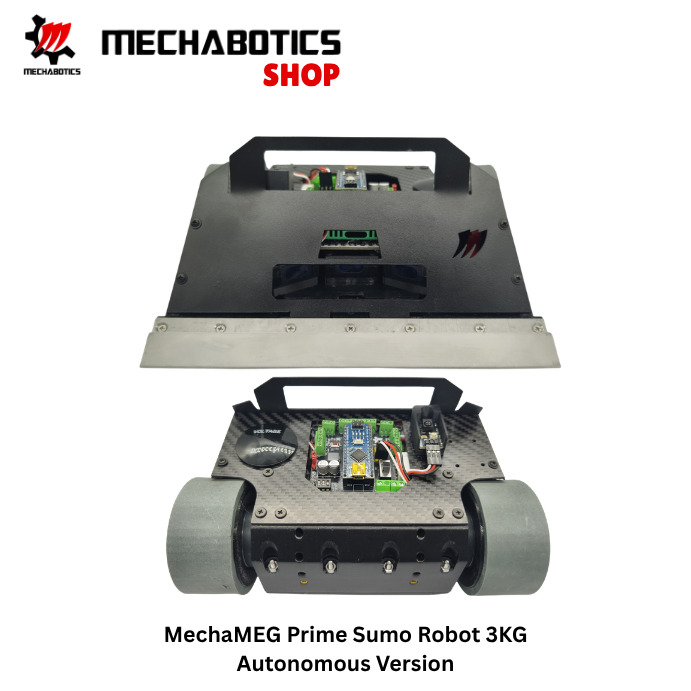

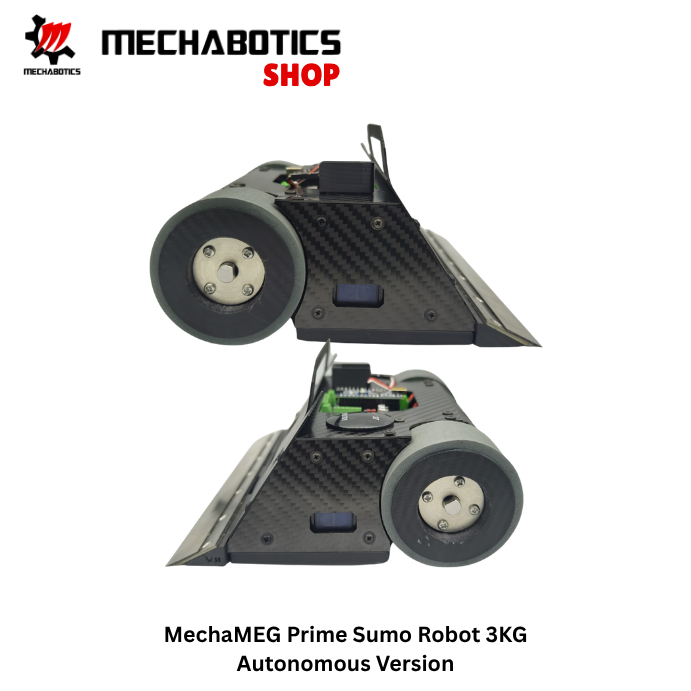

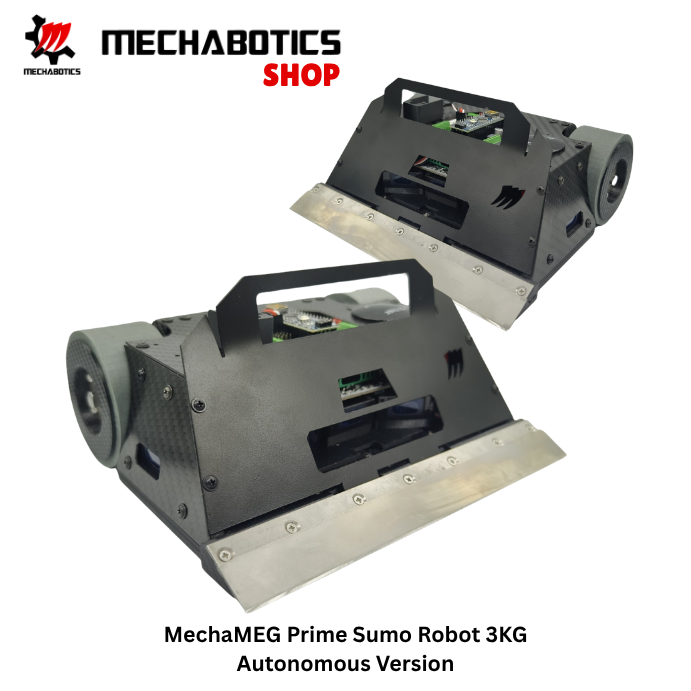

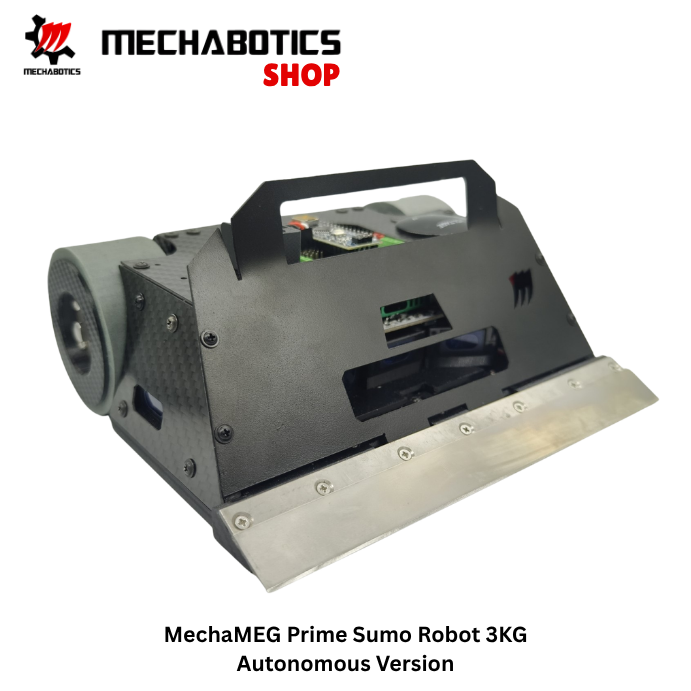

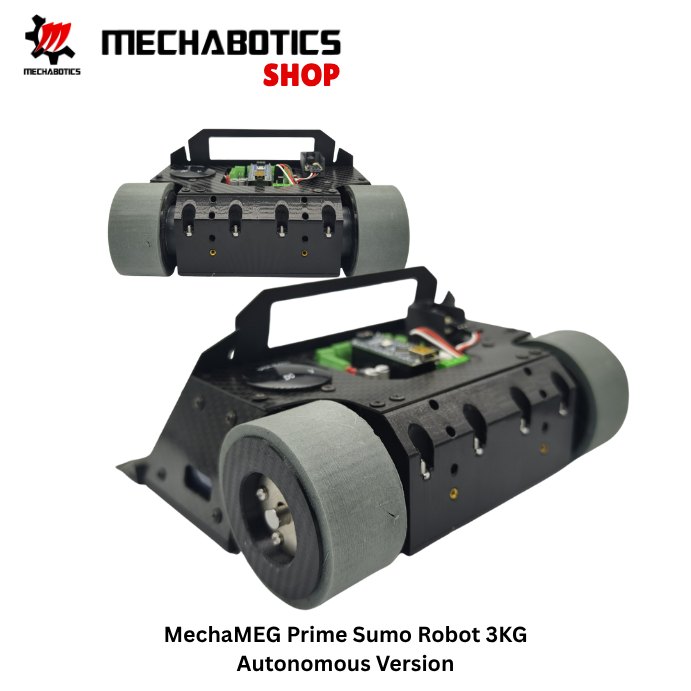

MechaMEG Prime Sumo Robot 3KG

Competition Spec | Autonomous / RC / Autonomous + RC

Take your sumo competition to the next level with the MechaMEG Prime Sumo Robot 3KG, a competition-ready robotic platform engineered for powerful pushing performance, fast response and tactical flexibility.

Built within a compact 20cm ? 20cm footprint and weighing approximately 2.8?3.0kg, MechaMEG Prime combines a robust construction of Mild Steel, Aluminium and 3D Printed components with a durable powder-coated finish.

At the heart of the drive system are 2? 12V G36 High Speed & High Torque DC Motors, delivering approximately 333RPM and 15kg?cm torque. These are paired with wide high-grip silicone tyres and a 60A Dual Motor Driver to provide strong acceleration, traction and pushing capability during competition.

Powerful Front Attack System

MechaMEG Prime features 4? sharp blades measuring 200 ? 20 ? 0.6mm, creating a low and aggressive front attack profile.

The thin blade design helps the robot get underneath an opponent during frontal attacks while maintaining a strong and stable platform.

7 Tactical Modes

A built-in 7-Mode Tactical DIP Switch allows different competition strategies to be selected before each match.

This provides greater flexibility when facing different opponent designs, starting positions and attack strategies.

Autonomous Version ? KIT013

The Competition Spec Autonomous Version is equipped with a complete opponent and edge detection system.

It includes:

5? Laser Opponent Sensors with detection range up to approximately 80cm

2? Edge Detection Line Sensors

IR Remote Start Module + Remote

Autonomous tactical programming

7 selectable tactical modes

The sensor configuration enables MechaMEG Prime to detect opponents from multiple directions while monitoring the edge of the sumo arena.

RC Version ? KIT014

The Competition Spec RC Version provides direct manual control using a 6-Channel DumboRC Controller.

This configuration is suitable for RC Sumo competitions where driver control, positioning and attack timing are critical.

The RC version retains the same heavy-duty chassis, high-torque drive system, sharp blade and wide silicone tyres of the MechaMEG Prime platform.

Autonomous + RC Version ? KIT015

For maximum flexibility, the Autonomous + RC Version combines both control configurations into one robot platform.

Users can configure the robot for Autonomous Sumo or RC Sumo, making KIT015 suitable for teams that participate in multiple competition categories or require a versatile platform for training and development.

Main Specifications

Product: MechaMEG Prime Sumo Robot 3KG
Category: Competition Spec ? 3KG Sumo Robot
Robot Size: 20cm ? 20cm
Robot Weight: Approximately 2.8?3.0kg
Battery: 11.1V / 14.8V
Drive System: 2WD
Motor: 2? 12V G36 High Speed & High Torque DC Motor
Motor Speed: Approximately 333RPM
Motor Torque: Approximately 15kg?cm
Motor Driver: 60A Dual Motor Driver + Controller Board
Front Blade: 4? Sharp Blade (200 ? 20 ? 0.6mm)
Tyre: Wide High-Grip Silicone Tyre
Tactical Selection: 7-Mode Tactical DIP Switch
Opponent Detection: 5? Laser Opponent Sensors, up to approximately 80cm (Autonomous Version)
Edge Detection: 2? Edge Detection Line Sensors (Autonomous Version)
Start System: IR Remote Start Module + Remote (Autonomous Version)
RC System: 6-Channel DumboRC Controller (RC Version)
Body Material: Mild Steel, Aluminium & 3D Printed Components
Body Finishing: Powder Coated

Package Includes

1? MechaMEG Prime Sumo Robot 3KG

1? Battery

1? Pair Wide Silicone Tyres

1? Extra Pair Wide Silicone Tyres

1? 2S?4S Box Charger

1? Storage Box

1? Screwdriver

1? Allen Key Set

Extra Screws & Nuts

1? Battery Checker

1? USB Cable

Autonomous components according to selected version

RC Controller according to selected version

Available Variations

KIT013 ? Autonomous Version
Competition Spec with 5? Laser Opponent Sensors, 2? Edge Detection Sensors and IR Remote Start System.

KIT014 ? RC Version
Competition Spec with 6-Channel DumboRC Controller for manual operation.

KIT015 ? Autonomous + RC Version
Complete dual-configuration package supporting both Autonomous and RC competition setups.

Built for Competition

MechaMEG Prime is developed for users who need more than a basic educational robot. Its robust chassis, powerful drivetrain, configurable tactical system and competition-focused design make it suitable for robotics teams, schools, universities, TVET institutions, robotics clubs and serious sumo competitors.

MechaMEG Prime ? Built Strong. Push Hard. Dominate the Dohyo.

Important Note

Robot specifications and included components may be updated as part of continuous product improvement. Actual performance may vary depending on battery voltage, tyre condition, arena surface, robot setup and tactical programming.

Users are advised to verify the specific rules and technical requirements of their competition before participating.
